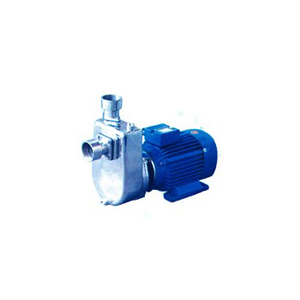

HYLZ stainless steel self priming pump
Product Details
Main use:
Hyl and HYLZ series pump transporting temperature is not higher than 90 DEG C (direct coupling type) or less than 105 degrees Celsius (with bearing brackets), with (or without) have small soft particles or fiber, with corrosion or health requirements of liquid, HYLZ series of pump also has the self-priming performance, two series pumps are widely used in food, beverage, pharmaceutical, sewage treatment, chemical, electroplating, dyeing, fine chemical industry.
Technical parameter:
HYLZ直聯(lián)、半開式葉輪自吸泵系列 轉速n=2800轉/分
型號 | 電機功率 （千瓦） | 口徑（毫米） | 效率% | 揚程H（米） 流程Q（米3/小時） | 允許吸上真空（米） | ||||||||||
進口 | 出口 | ||||||||||||||
25HYLZ-8 | 0.25 | 25 | 20 | 40 | H | 9 | 8 | 7 | 6 | 5 | 4 | 3 |
|
| 5.5 |
Q | 2.3 | 3 | 3.5 | 4.3 | 4.8 | 5.2 | 5.5 |
|
| ||||||
25HYLZ-8D | 0.25 | 25 | 20 | 40 | H | 9 | 8 | 7 | 6 | 5 | 4 | 3 |
|
| 5.5 |
Q | 2.3 | 3 | 3.5 | 4.3 | 4.8 | 5.2 | 5.5 |
|
| ||||||
40HYLZ-13 | 0.55 | 25 | 25 | 40 | H | 16 | 15 | 14 | 13 | 12 | 10 | 8 | 6 | 4 | 4 |
Q | 3 | 4 | 4.8 | 6 | 6.5 | 7.5 | 8.5 | 9.5 | 10 | ||||||
40HYLZ-13D | 0.55 | 25 | 25 | 40 | H | 16 | 15 | 14 | 13 | 12 | 10 | 8 | 6 | 4 | 4 |
Q | 3 | 4 | 4.8 | 6 | 6.5 | 7.5 | 8.5 | 9.5 | 10 | ||||||
50HYLZ-18 | 1.5 | 40 | 40 | 49 | H | 21 | 20 | 19 | 18 | 16 | 14 | 12 | 10 | 8 | 4 |
Q | 6 | 7 | 8.5 | 10 | 12 | 14 | 15.5 | 17.3 | 18.5 | ||||||
50HYLZ-18D | 1.5 | 40 | 40 | 49 | H | 21 | 20 | 19 | 18 | 16 | 14 | 12 | 10 | 8 | 4 |
Q | 6 | 7 | 8.5 | 10 | 12 | 14 | 15.5 | 17.3 | 18.5 | ||||||
50HYLZ-22 | 3 | 50 | 50 | 50 | H | 28 | 26 | 25 | 24 | 22 | 20 | 18 | 16 | 14 | 4 |
Q | 8.5 | 11.5 | 13.5 | 14.5 | 16.5 | 19 | 20.5 | 22 | 23.8 | ||||||
